FREEFLY FLUX L1 LIDAR SCANNER

Calculating price...
PART: 950-00180
SUPPLIER: FREEFLY Systems
QUANTITY

About This Item:

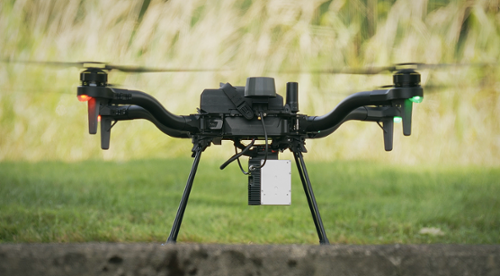

The FREEFLY Flux L1 LiDAR Scanner is an aerial mapping payload built around the Livox Avia scanner for point cloud data collection and non-repetitive scanning. The Flux L1 provides ±5 cm accuracy, 2 cm precision, a 450 m range, 70° × 77° field of view, triple laser returns, and up to 720,000 points per second. Dual full-band u-blox X20 GNSS receivers support L1, L2, L5, and L6 signals, while an integrated 20 MP Ximea RGB camera supports point cloud colorization.

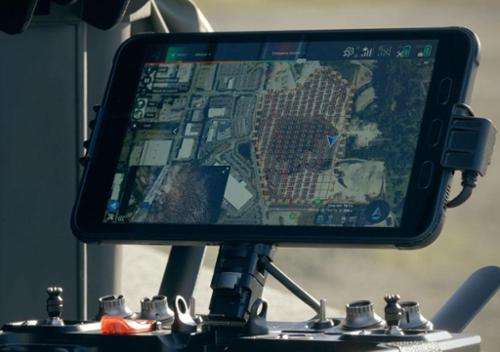

Designed for aerial LiDAR mapping, the Flux L1 supports applications including power line scanning, vegetation mapping, terrain modeling, and infrastructure inspection. FREEFLY specifically identifies the L1's non-repetitive scanning capability for power lines and other hard-to-image subjects. Field data is stored on a removable USB-C drive and can be processed on-site using an Apple iPad, with GNSS post-processing, coordinate reference system selection, ground control point alignment, and LAS or LAZ point cloud export supported within the Flux workflow.

Key Features:
  • Livox Avia LiDAR scanner
  • ±5 cm accuracy
  • 2 cm precision
  • Up to 450 m range
  • 70° × 77° field of view
  • Triple laser returns
  • Up to 720,000 points per second
  • Non-repetitive scanning capability
  • 20 MP Ximea RGB camera
  • Dual full-band u-blox X20 GNSS receivers
  • L1, L2, L5, and L6 GNSS signal support
  • Industrial IMU system
  • GNSS post-processing with PPK
  • 256 GB USB-C removable storage
  • FREEFLY Smart Dovetail hardware interface
  • Approximately 720 g payload weight
  • Compatible with FREEFLY Astro
  • Compatible with FREEFLY Alta X Gen2
  • On-site LiDAR processing using an Apple iPad
  • LAS and LAZ point cloud export
  • Supports coordinate reference systems and ground control point alignment



*Products on this page are subject to U.S. Export Administration Regulations (EAR). They may not be exported, re-exported, or used in violation of U.S. law, including restrictions on destination, end use, or end user. By issuing a purchase order or accepting delivery, Buyer acknowledges these restrictions and agrees to comply with all applicable regulations.

*Full notice available at: https://www.gresco.com/spcu/ipage?code=ExportComplianceNotice and https://www.gresco.com/spcu/ipage?code=EAR-RegulatedTechnologyandEncryptionProductNotice

FREEFLY FLUX SPECIFICATION SHEET
FREEFLY FLUX SPECIFICATION SHEET

There are currently no specs for this product.

Qty 1 - Flux L1 LiDAR payload

Qty 1 - GNSS antenna

Qty 1 - GNSS receiver

Qty 1 - USB-C cable

Qty 1 - USB drive

Qty 1 - Mounting hardware

Quick start guide
