The GenerLink Hybrid Transfer Switch 30AMP Surge Model is a meter-adjacent backup power solution designed to connect a portable generator directly to a residential electrical system during power outages. Installed near the electric meter, this hybrid configuration provides an alternative for locations where a standard meter-mounted installation is not approved, while still delivering generator power to the home’s main breaker panel without requiring interior rewiring or a dedicated subpanel. The system enables homeowners to restore power to essential hardwired circuits such as lighting, sump pumps, well pumps, refrigeration, and security systems based on generator capacity, supporting continuity during utility outages caused by storms, grid failures, or planned interruptions.

This 30AMP surge model includes integrated whole-home surge protection rated at 75 kA, helping protect connected appliances and electrical systems from electrical surges during generator operation. The system is designed to simplify installation while maintaining compliance with electrical safety requirements, with built-in back feed prevention to isolate generator power from the utility grid. Its always-installed design allows for immediate generator connection when needed, making it suitable for residential backup power applications where safe, compliant, and flexible power distribution is required across existing circuits.

Please note: Installation will need to be performed by a licensed electrician.

Key Features - GenerLink Hybrid 30-Amp Surge Model:

• Hybrid transfer switch design for installations where utility approval for meter-mounted units is not available
• 30AMP generator input compatible with L14-30 connection
• Max generator continuous wattage: 7,200W
• Integrated 75 kA whole-home surge protection
• Direct connection to main breaker panel without rewiring or subpanel installation
• Powers hardwired loads including lighting, pumps, refrigeration, and security systems
• Prevents utility back feed for safe generator operation
• Supports flexible circuit selection through existing breaker panel
• Compatible with residential electrical services rated up to 200 amps
• Always-installed configuration for immediate use during outages
• Designed for simplified installation with reduced labor and system components

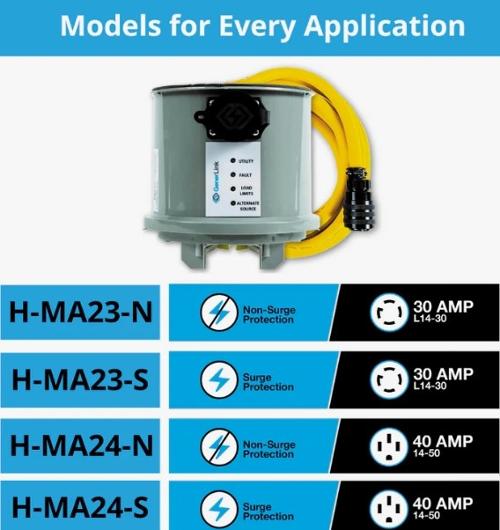

Recommended: GenerLink Hybrid 30 amp - use with portable generators running below 7,200 watts. Comes with 14-30AMP straight connector on a 20-foot GenerLok Power Cord and GenCap cover.
