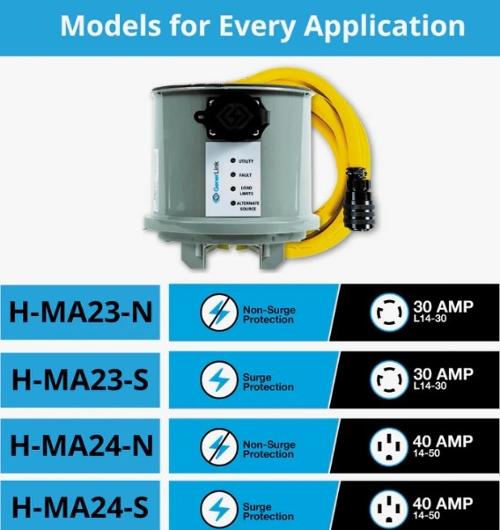

The GenerLink Hybrid Transfer Switch – 30Amp Non‑Surge Model is a meter‑mounted transfer switch system designed to connect a portable generator directly to a home’s electrical system during power outages. Installed behind the electric meter or in an adjacent meter configuration, this system delivers generator power to the main breaker panel without requiring interior rewiring or a separate transfer switch. It provides a direct connection point using a compatible GenerLok power cord and isolates the home from the utility grid during operation to prevent back feeding.

This hybrid configuration is intended for applications where standard utility‑mounted installation is not approved, allowing homeowners to implement a backup power solution without utility restrictions. Typical use cases include residential backup power during storm outages, grid interruptions, or planned service downtime, where maintaining operation of essential circuits is required. The system allows power to be distributed through the existing breaker panel to support hardwired loads such as sump pumps, well pumps, lighting, refrigeration, and security systems based on generator capacity.

Please note: Installation will need to be performed by a licensed electrician.

Key Features - GenerLink Hybrid 30-Amp Non-Surge Model:

• 30 amp non‑surge transfer switch designed for portable generator connection
• Max generator continuous wattage: 7,200W
• Hybrid system configuration supports installation where utility meter mounting is not approved
• Installs behind the electric meter or adjacent meter base without interior rewiring
• Directly feeds generator power to the home’s main breaker panel
• Prevents back feeding by disconnecting from the utility grid during generator operation
• Compatible with GenerLok power cord system for generator connection
• Supports operation of hardwired home systems such as sump pumps, well pumps, lighting, and security systems
• Eliminates the need for extension cords or separate transfer panels
• Enables circuit control through the existing breaker panel based on generator capacity
• Designed for safe residential backup power applications during outages and emergency events

Recommended: GenerLink Hybrid 30 amp - use with portable generators running below 7,200 watts. Comes with 14-30AMP straight connector on a 20-foot GenerLok Power Cord and GenCap cover.
