FREEFLY RTK GPS GROUND STATION

Calculating price...
PART: 910-00659
SUPPLIER: FREEFLY Systems
QUANTITY

About This Item:

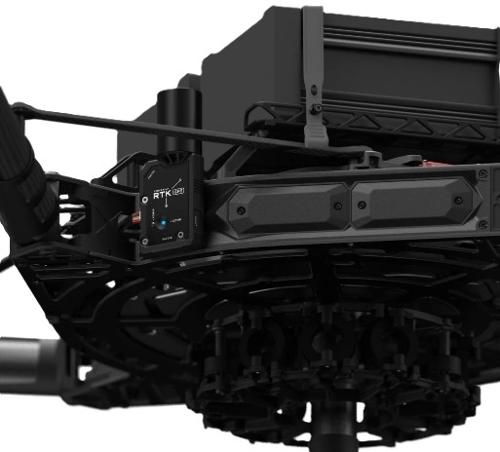

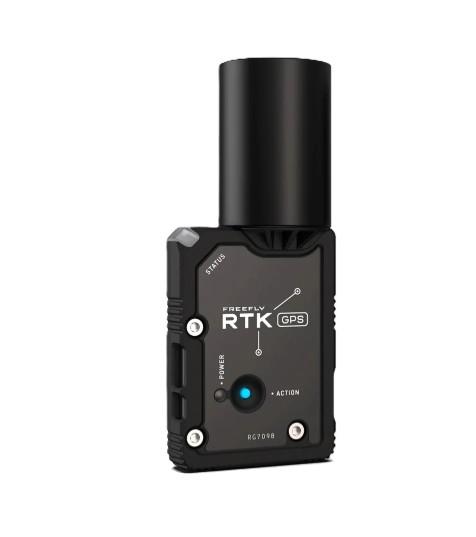

The FREEFLY RTK GPS Ground Station, part number 910-00659, is a GNSS module designed to provide Real-Time Kinematic positioning for compatible FREEFLY Alta X and Astro aircraft. In an RTK configuration, the ground station module connects to a ground station computer and provides GPS corrections to the rover module aboard the aircraft, increasing horizontal and vertical positioning precision from several meters to a few centimeters in real time. The system uses a u-blox ZED-F9P GPS module with multiband L1/L2 reception.

Designed for drone operations requiring centimeter-level positioning, the RTK GPS Ground Station supports compatible Alta X and Astro workflows where improved positional accuracy is required. The kit includes the RTK GPS module, multiband RTK GPS antenna, magnetic tripod mounting hardware with a 1/4"-20 interface, mounting screws, and a 3 m USB cable. A ground station computer and tripod are not included, and some Alta X configurations additionally require a compatible radio link between the ground station computer and aircraft.

Key Features:
  • Real-Time Kinematic positioning for compatible FREEFLY aircraft
  • Centimeter-level horizontal and vertical positioning
  • u-blox ZED-F9P GPS module
  • Multiband L1/L2 GNSS receiver
  • Includes IST8310 magnetometer
  • Includes BMP388 barometer
  • Integrated safety switch and LED indicators
  • Compatible with supported Alta X configurations
  • Compatible with Astro configurations

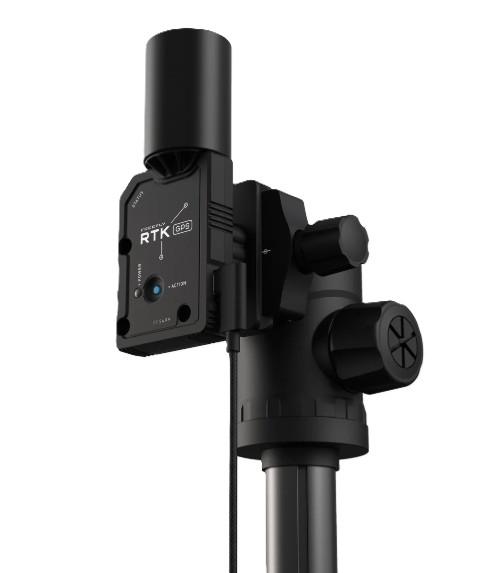

  • Magnetic mounting hardware with 1/4"-20 tripod interface
  • Includes multiband RTK GPS antenna
  • Includes 3 m USB Type-C right-angle to USB Type-A cable
Freefly RTK GPS Ground Station Quick Start Guide
Freefly RTK GPS Ground Station Quick Start Guide

There are currently no specs for this product.

Qty 1 - RTK GPS module

Qty 1 - Multi-band RTK GPS antenna

Qty 1 - Magnetic mounting kit for tripod, etc (¼ 20 interface)

Qty 4 - Mounting screws for Magnetic Mounting Kit (M3 x 6 FHCS)

Qty 1 - USB cable, Type C right-angle to Type A (3 m / 9.84 ft long)

Qty 3 - Mounting Screws for Alta X Rover installation (M3 x 16 SHCS)
