GEOCUE TRUEVIEW 641 LiDAR NDAA COMPLIANT TRADITIONAL (INCLUDES SOFTWARE)

Calculating price...
PART: FTV1002147A00T
SUPPLIER: GeoCue
QUANTITY

About This Item:

The GeoCue TrueView 641 is an NDAA-compliant UAV LiDAR and imaging payload designed for engineering-grade aerial mapping. Developed in partnership with Triple-IN Laser Technic, the system combines a single-beam Triple-IN SLP-LW LiDAR scanner with a 26 MP global shutter camera and GeoCue TrueNav positioning and orientation system. The LiDAR supports up to six returns, a 120° field of view, pulse repetition rates up to 125 kHz, and a usable range of 170 meters on targets with 20% reflectivity.

Designed for government and commercial drone mapping applications, the TrueView 641 supports rail inspection, wire extraction for distribution networks, road design, and other UAV surveying and infrastructure mapping workflows. The 2 kg payload integrates LiDAR and imagery collection while the included LP360 Drone software provides data processing, GIS integration, point cloud visualization, Strip Align, and Photo tools for working with collected mapping data.

LP360 Photo

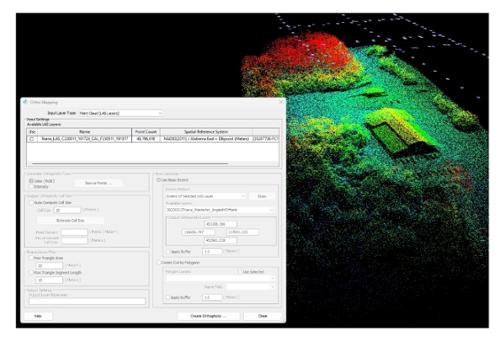

LP360 Photo is included with the TrueView 641 as an add-on to LP360 Drone for orthophoto mapping. The software provides an integrated workflow for creating orthophoto backdrops by working with LiDAR and photo data within the LP360 processing environment.

LP360 Photo Features:
  • Create orthophoto backdrops within the LP360 workflow
  • Process LiDAR and photo data within an integrated environment
  • Export photo packages to third-party photogrammetry software
  • Supports imagery from DJI Mavic 3E
  • Supports imagery from DJI Phantom 4 RTK
  • Supports imagery from DJI Zenmuse P1


LP360 Drone

LP360 Drone is included with the TrueView 641 for processing UAV LiDAR and photo data. The software supports multi-flight import and processing, integration with other geospatial information through a GIS interface, and point cloud visualization using multiple synchronized windows.

Use LP360 Drone for:
  • Multi-flight import and processing
  • GIS integration with other geospatial data
  • Point cloud visualization
  • Multiple synchronized data viewing windows


LP360 3D Accuracy

LP360 3D Accuracy provides automated horizontal and vertical accuracy checks for drone datasets. It supports checkpoint coordinate transformation into project coordinates, including datum and epoch, automatic target identification using AutoTarget, calculation of corrections for 3D targets, and application of those corrections to the point cloud.

Use LP360 3D Accuracy for:
  • Checkpoint coordinate transformation
  • Datum and epoch transformation
  • Automated 3D target identification with AutoTarget
  • 3D target correction calculations
  • Applying corrections to point clouds
  • Use with compatible ground control equipment




Key Features:
  • NDAA-compliant LiDAR and imagery system
  • Triple-IN SLP-LW single-beam LiDAR scanner
  • Up to six LiDAR returns
  • Usable LiDAR range of 170 m on targets with 20% reflectivity
  • Pulse repetition rate up to 125 kHz
  • Scanner precision of ≤3 mm
  • Scanner accuracy of ≤4 mm
  • 120° LiDAR field of view
  • NDAA-compliant 26 MP global shutter camera
  • GeoCue TrueNav positioning and orientation system
  • Typical system precision of 20 mm on one strip
  • Less than 15 mm precision at 1 sigma observed at 75 m on concrete
  • Typical system accuracy of 3 cm RMSE
  • Better than 5 cm 3D RMSE, dependent on GNSS conditions, control point accuracy, and coordinate system
  • 2 kg payload-only mass
  • Operating temperature range of -10°C to +50°C
GEOCUE TRUEVIEW 641 SPECIFICATION SHEET
GEOCUE TRUEVIEW 641 SPECIFICATION SHEET

There are currently no specs for this product.

Qty 1 - TrueView 641 LiDAR Payload

Qty 1 - USB Thumbdrive

Qty 1 - GNSS Antenna

Qty 1 - Sensor Hardcase

Qty 1 - Concentric Target
