The TrueView 539 is a lightweight UAV LiDAR and imaging payload designed for engineering-grade aerial mapping and surveying. It combines a CHCNAV single-beam 1535 nm LiDAR scanner with a 26 MP global shutter full-frame camera, providing up to six LiDAR returns, a pulse repetition rate up to 500 kHz, and usable range up to 300 m for targets with greater than 20% reflectivity. The system provides 5 mm scanner precision and 15 mm scanner accuracy, while the integrated CHC positioning and orientation system supports PPK navigation for georeferenced LiDAR and imagery collection.
At 1.45 kg for the payload, the TrueView 539 is designed for integration with commercial UAV platforms and supports mapping applications including densely vegetated topography, coal pile inventory and volumetric analysis, and detailed 3D mapping of vertical structures. The system includes LP360 Drone processing software for LiDAR data processing, multi-flight workflows, GIS-based analysis, and point cloud visualization, with optional add-ons available for orthophoto production, strip alignment, and 3D accuracy workflows.
 |
 |
|
|
LP360 Drone

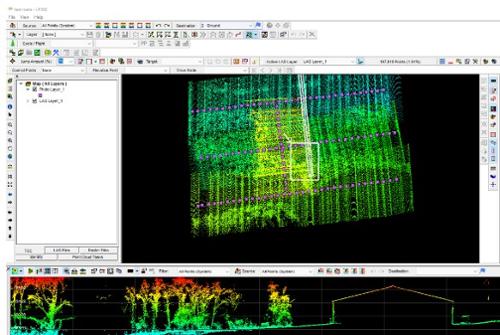

LP360 Drone is included with the TrueView 539 for processing LiDAR data within a geospatial workflow. The software supports multi-flight import and processing, integration with other geospatial data through a GIS interface, and point cloud visualization using multiple synchronized viewing windows.
Use LP360 Drone for:
- Multi-flight LiDAR data import and processing
- GIS-based workflows with additional geospatial data
- Point cloud visualization
- Multiple synchronized data viewing windows
|
|
LP360 3D Accuracy Optional Add-On
LP360 3D Accuracy provides automated horizontal and vertical accuracy checking for drone datasets. The add-on can transform checkpoint coordinates into project coordinates, including datum and epoch, automatically identify 3D targets within a drone dataset, calculate corrections for 3D targets, and apply corrections to the point cloud.
Use 3D Accuracy for:
- Checkpoint coordinate transformation
- Datum and epoch transformation
- Automatic 3D target identification with AutoTarget
- 3D target correction calculation
- Applying calculated corrections to point clouds
- Integration with compatible ground control equipment
|
|
| |
LP360 Photo Optional Add-On
LP360 Photo adds orthophoto processing to LP360 Drone, allowing users to create orthophoto backdrops within the LiDAR project workflow. The software combines LiDAR data with captured imagery and provides tools for exporting photo packages to third-party photogrammetry applications.
LP360 Photo Features:
- Integrated orthophoto creation
- LiDAR and photo processing within the LP360 workflow
- Photo package export to third-party photogrammetry software
- Support for imagery from DJI Mavic 3E
- Support for DJI Phantom 4 RTK imagery
- Support for DJI Zenmuse P1 imagery
|
|
LP360 Drone Processing Software Included
The TrueView 539 includes LP360 Drone for processing collected LiDAR data. LP360 Drone provides multi-flight import and processing, a GIS interface for working with additional geospatial datasets, and point cloud visualization through multiple synchronized viewing windows.
Additional LP360 capabilities are available as optional add-ons. GeoCue currently identifies Strip Align for Drone, Photo, and 3D Accuracy among the optional processing tools available for TrueView 539 workflows.
Key Features:
- CHCNAV single-beam LiDAR scanner
- 1535 nm laser wavelength
- Up to 300 m usable LiDAR range for targets with greater than 20% reflectivity
- Up to six LiDAR returns
- Pulse repetition rate up to 500 kHz
- 5 mm scanner precision
- 15 mm scanner accuracy
- CHC positioning and orientation system
- Position performance of 10 to 20 mm
- Orientation performance of 0.006° roll/pitch and 0.019° heading
- CHC PPK navigation solution
- 2 to 5 cm absolute system accuracy
- 26 MP global shutter full-frame camera
- 1.45 kg payload-only weight
- 1.75 to 1.90 kg weight depending on accessories
- Operating temperature range of -20°C to 50°C
There are currently no specs for this product.
Qty 1- TrueView 539 LiDAR Payload
Qty 1- GNSS Antenna
Qty 1- Payload Interface
Qty 1- Sensor Hardcase
LP360 Drone Processing Software
1 Year of Hardware and Software Support
