GEOCUE TRUEVIEW GO116S TRADITIONAL BASIC

Calculating price...
PART: FTV1001747A00T
SUPPLIER: GeoCue
QUANTITY

About This Item:

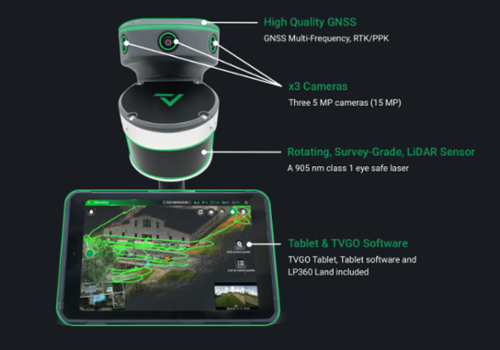

The GeoCue TrueView GO 116S is a handheld LiDAR and imagery mapping system designed for indoor and outdoor reality capture and high-definition 3D mapping. The system combines a 16-channel survey-grade 905 nm LiDAR sensor with three 5 MP RGB cameras, GNSS, and SLAM technology for collecting georeferenced point clouds and imagery. GeoCue specifies horizontal and vertical absolute accuracy of less than 5 cm RMS and relative accuracy of less than 1 cm, with real-time accuracy assessment and loop-free data acquisition.

The TrueView GO 116S supports applications including architecture, engineering, construction, heritage conservation, forestry, Scan to BIM, facility and infrastructure management, public safety and forensics, and underground mining. The Traditional Basic configuration includes perpetual licensing for LP360 Land Basic, providing continued access to LiDAR processing and visualization tools without an annual software subscription.




Indoor and Outdoor 3D Mapping

The TrueView GO 116S combines LiDAR, imagery, GNSS, and SLAM data collection in a handheld system for scanning indoor, outdoor, and subterranean environments. Its survey-grade Class 1 eye-safe 905 nm LiDAR provides a measurement range from 0.05 to 120 m, with usable range dependent on channel position and target reflectivity.






Operate with Weak or No GNSS

The TrueView GO uses LiDAR and Visual SLAM data to calculate RTK point coordinates when GNSS signals are weak or unavailable. GeoCue specifies 5 cm precision within one minute for this workflow, supporting surveying and mapping in indoor spaces, urban canyons, and other environments with limited satellite reception.


Remote Measurement

The TrueView GO Tablet software supports remote measurement of points that cannot be physically occupied. GeoCue specifies real-time 3D coordinate measurements with 5 cm accuracy within 15 m, allowing reference points to be collected without placing the scanner directly on the target location.


Loop-Free Data Acquisition with RTK

When GNSS coverage is available, TrueView GO's SLAM technology supports loop-free data acquisition without requiring traditional loop closure and overlap. This provides more flexibility in planning the scanner's path through the mapped environment.





Key Features:
  • 16-channel survey-grade LiDAR sensor
  • LiDAR range up to 120 m
  • 320 kHz pulse rate with two returns
  • Three 5 MP RGB cameras
  • LiDAR, imagery, GNSS, and SLAM data collection
  • <5 cm RMS horizontal and vertical absolute accuracy
  • <1 cm relative accuracy
  • Real-time accuracy assessment
  • Loop-free data acquisition
  • 512 GB internal storage
  • Approximately 1-hour battery runtime
  • -20°C to 50°C operating temperature
  • Perpetual LP360 Land Basic software included



GEOCUE TRUEVIEW GO116S SPECIFICATION SHEET
GEOCUE TRUEVIEW GO116S SPECIFICATION SHEET

There are currently no specs for this product.

Qty1- TrueView GO116S

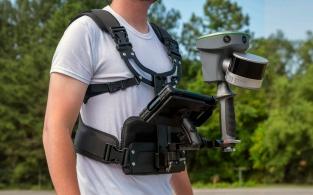

Qty1- Chest Mount Harness

Qty1- Sensor Hardcase

Qty1- TrueView Go Tablet

Qty1- Battery and Charger
