DJI ZENMUSE L2 ENTERPRISE LIDAR PAYLOAD

Calculating price...
PART: CB.202309210724
SUPPLIER: DJI
QUANTITY

About This Item:

The DJI Zenmuse L2 is an enterprise aerial LiDAR payload that integrates frame LiDAR, a high-accuracy IMU system, and a 4/3 CMOS RGB mapping camera for geospatial data collection. When used with DJI Terra, the L2 supports 3D data collection and point cloud post-processing. DJI specifies system accuracy of 4 cm vertical and 5 cm horizontal at 150 meters under defined laboratory conditions, with a detection range of 250 meters at 10% reflectivity under 100 klx and 450 meters at 50% reflectivity under 0 klx.

Designed for aerial surveying and mapping workflows, the Zenmuse L2 can collect both geospatial and RGB data and supports applications such as topographic surveying, forestry surveying, power line inspection, and other LiDAR-based mapping operations documented by DJI. The payload supports Matrice 400, Matrice 350 RTK, and Matrice 300 RTK when used with DJI RC Plus.

**THIS ITEM DOES NOT INCLUDE A MANUFACTURER'S WARRANTY OR CARE**

Integrated LiDAR Solution
Zenmuse L2 integrates frame LiDAR, a high-accuracy IMU system, and a 4/3 CMOS RGB mapping camera into a single aerial surveying payload. During operations, users can preview, play back, and process point cloud models on-site, while DJI Terra can generate Task Quality Reports and process collected point cloud data.





High-Level Precision
Zenmuse L2 combines GNSS with DJI's high-accuracy IMU system to provide system accuracy of 4 cm vertically and 5 cm horizontally at 150 meters under DJI's specified laboratory conditions. DJI Terra's Optimize Point Cloud Accuracy function is part of the test conditions used for the stated horizontal accuracy.




Data Collection Efficiency
Zenmuse L2 can collect geospatial and RGB data from a 2.5 km² area in a single flight under DJI's specified operating conditions. The system is ready for operation after powering on, helping streamline aerial LiDAR data collection workflows.

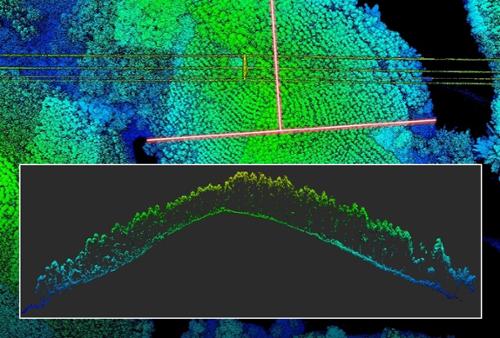

Point Cloud Acquisition
The Zenmuse L2 supports a maximum point cloud rate of 240,000 points per second in single-return mode and up to 1,200,000 points per second in multiple-return mode. It supports up to five returns and offers repetitive and non-repetitive scanning patterns for different data collection requirements.






Detection Range
Zenmuse L2 provides a detection range of 250 meters at 10% reflectivity under 100 klx and 450 meters at 50% reflectivity under 0 klx. DJI lists a maximum detection range of 500 meters, with actual range dependent on factors including target reflectivity, lighting, atmospheric visibility, and how the laser interacts with the subject.

RGB Mapping Camera
The integrated RGB mapping camera uses a 4/3 CMOS sensor with 20 MP effective resolution and a mechanical shutter. DJI specifies a minimum photo interval of 0.7 seconds and a mechanical shutter life of 200,000 actuations. When point cloud collection is not required, the RGB camera can also capture photos and videos or collect images for visible-light mapping.



Key Features:
  • Integrated frame LiDAR, high-accuracy IMU, and 4/3 CMOS RGB mapping camera
  • 4 cm vertical and 5 cm horizontal system accuracy at 150 m under specified test conditions
  • Detection range up to 450 m at 50% reflectivity and 0 klx
  • Maximum detection range of 500 m
  • Up to 240,000 points per second in single-return mode
  • Up to 1,200,000 points per second in multiple-return mode
  • Supports up to five returns
  • Repetitive and non-repetitive scanning patterns
  • 20 MP 4/3 CMOS RGB mapping camera with mechanical shutter
  • Real-time point cloud coloring by reflectivity, height, distance, and RGB
  • IP54 ingress protection rating
  • Compatible with Matrice 400 and Matrice 350 RTK
  • Compatible with Matrice 300 RTK when used with DJI RC Plus


There are currently no resources for this product.

There are currently no specs for this product.

Qty 1- DJI Zenmuse L2

Qty 1- MicroSD Card (128GB)

Qty 1- Lens Cap

Qty 1- Storage Case

Qty 1- Lens Cleaning Cloth

Qty 1- DJI Care Enterprise Plus
