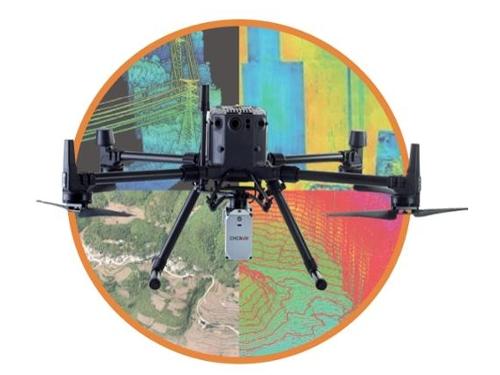

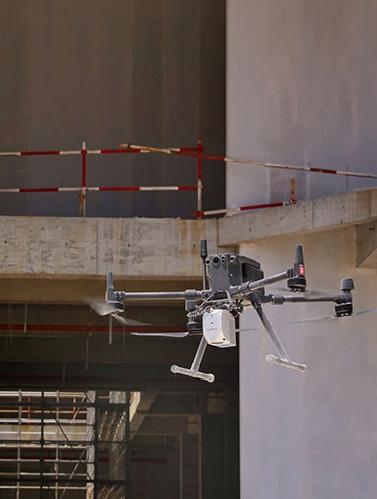

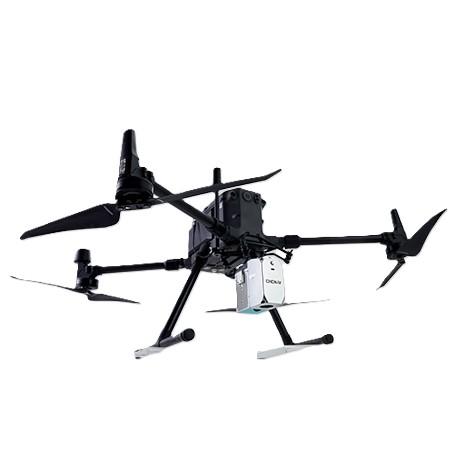

The AlphaAir 450 UAV LiDAR with 26MP camera for Wispr Systems Ranger Pro is a lightweight, high-accuracy mapping solution designed for professional geospatial and surveying applications. Integrating the Livox Avia laser scanner, a 26MP industrial-grade camera, and a high-precision GNSS/IMU navigation system, the AlphaAir 450 delivers dense point clouds and high-resolution imagery in a single flight. This system is ideal for power line inspection, topographic mapping, emergency response, agricultural and forestry surveys, and infrastructure assessment. Its compact design and low weight enable longer UAV flight times and compatibility with a wide range of platforms, including direct integration with DJI M300 and other multi-rotor or fixed-wing UAVs.

The AlphaAir 450 offers advanced accuracy with absolute vertical precision of less than 5 cm and horizontal accuracy of less than 10 cm, supported by robust data alignment algorithms in the included CoPre software. The system features one-touch operation, a built-in Skyport interface, and 256GB of onboard storage for efficient data handling. With an IP64 rating and an operating temperature range from -20°C to +50°C, it is engineered for reliability in challenging field environments. The AlphaAir 450 democratizes 3D mobile mapping, making high-quality LiDAR accessible to both experienced professionals and new users.

Key Features:

• Livox Avia laser scanner with up to 450 m range
• 26MP industrial-grade camera (6252 × 4168 resolution, 30 fps)
• Absolute accuracy: <10 cm horizontal, <5 cm vertical
• Point density: up to 570 pts/m² at 50 m AGL, 280 pts/m² at 100 m AGL
• Scan rate: up to 720,000 pts/sec (triple return)
• Integrated GNSS and high-precision IMU for survey-grade georeferencing
• One-touch operation and built-in Skyport for DJI M300 compatibility
• 256GB onboard storage, high-speed USB Type-C data transfer
• IP64-rated for dust and water resistance
• Operating temperature: -20°C to +50°C
• Ideal for power line inspection, topographic mapping, emergency response, agriculture, forestry, and infrastructure surveys
