DJI ZENMUSE H30 ENTERPRISE PAYLOAD

Calculating price...
PART: CB.202404230975
SUPPLIER: DJI
QUANTITY

About This Item:

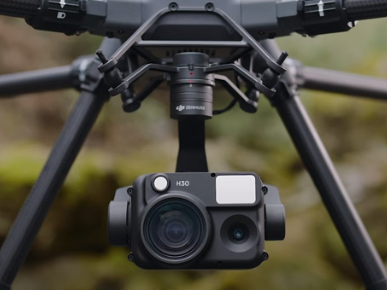

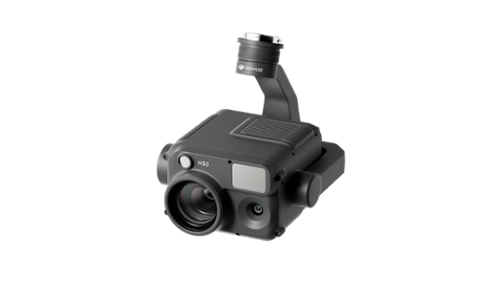

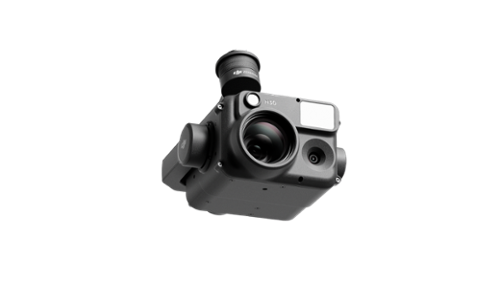

The DJI Zenmuse H30 is a multi-sensor enterprise payload that integrates a 48 MP wide-angle camera, 40 MP zoom camera, laser range finder, and NIR auxiliary light. The zoom camera supports up to 34× optical zoom and 400× digital zoom, while the laser range finder provides a measurement range from 3 to 3,000 meters. Both the wide-angle and zoom cameras support Night Scene mode for low-light operations. DJI identifies public safety, energy inspection, water conservation, and forestry as key applications for the Zenmuse H30 Series.

The DJI Zenmuse H30 is compatible with DJI Matrice 400, Matrice 350 RTK, and Matrice 300 RTK when the Matrice 300 RTK is used with DJI RC Plus. The payload features 3-axis stabilization, an IP54 protection rating under controlled laboratory conditions, and an operating temperature range of -20°C to 50°C.

**THIS ITEM DOES NOT INCLUDE A MANUFACTURER'S WARRANTY OR CARE**







Zoom Camera

- Up to 34× Optical Zoom‌ and 400× Digital Zoom
- 40MP 1/1.8-inch CMOS Sensor
- Video Resolution: Max 3840×2160@30fps
Wide-Angle Camera

- Equivalent Focal Length: 24mm, DFOV: 82.1°
- 48MP 1/1.3-inch CMOS Sensor
- Video Resolution: Max 3840×2160@30fps
Laser Range Finder

- Measurement Range: 3-3000 m
- Measurement Accuracy: ≤ 500 m: ±(0.2 m+measurement distance×0.15%)‌> 500 m: ±1.0 m








Smart Capture for Enhanced Imaging
Smart Capture allows the Zenmuse H30 Series to evaluate ambient light brightness and dynamic range and automatically apply image processing. DJI states that the feature can produce photos with natural transitions between light and dark areas and rich details, including in environments with high dynamic range, strong light, or low light.



Key Features:
  • Four-module design with wide-angle camera, zoom camera, laser range finder, and NIR auxiliary light
  • 48 MP 1/1.3-inch CMOS wide-angle camera
  • 40 MP 1/1.8-inch CMOS zoom camera
  • Up to 34× optical zoom and 400× digital zoom
  • Laser range finder with a 3 to 3,000 m measurement range
  • 850 nm NIR auxiliary light
  • Night Scene mode for wide-angle and zoom cameras
  • Smart Capture for challenging lighting conditions
  • Electronic dehazing for improved imaging clarity in haze and fog
  • 3-axis stabilized gimbal
  • IP54 protection rating under controlled laboratory conditions
  • Operating temperature range of -20°C to 50°C
  • Compatible with DJI Matrice 400 and Matrice 350 RTK
  • Compatible with DJI Matrice 300 RTK when used with DJI RC Plus


There are currently no resources for this product.

There are currently no specs for this product.

Qty 1- DJI Zenmuse H30

Qty 1- Storage Case

Qty 1- Cleaning Cloth

Qty 1- Care Plus Plan
