PHASE ONE P3 + IXM-GS120 FOR DJI MATRICE 300/350 WITH 1-YEAR SILVER SUPPORT

Calculating price...
PART: 76022060
SUPPLIER: PHASE ONE UNITED STATES, INC.
QUANTITY

About This Item:

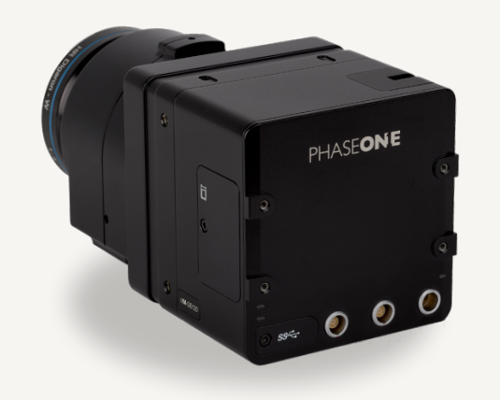

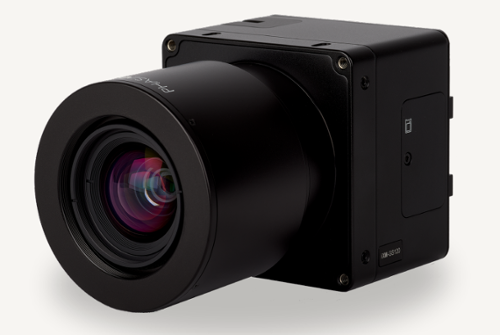

The Phase One P3 + iXM-GS120 combines the P3 UAV camera platform with the 120 MP iXM-GS120 CMOS global shutter camera for professional aerial inspection and mapping applications. The iXM-GS120 captures 12,768 x 9,564-pixel images and provides an 80 dB dynamic range, with an electronic global shutter capable of exposure times up to 1/16,000 second. This combination supports detailed image capture of rapidly moving objects and demanding assets where high-resolution aerial imagery is required.

Designed for integration with DJI Matrice 300 and Matrice 350 platforms, the P3 system provides smart focusing, smart triggering, and a built-in laser range finder for professional UAV imaging workflows. The iXM-GS120 supports RGB and achromatic configurations, Phase One RSM and RS lens mounts, and CFexpress internal storage up to 1 TB. This configuration also includes 1-Year Silver Support.





Large Number of Pixels
The iXM-GS120 provides a 120 MP resolution of 12,768 x 9,564 pixels for capturing high-resolution imagery with fine detail.

High Dynamic Range
The iXM-GS120 provides an 80 dB dynamic range to capture detailed imagery across varying light conditions.

No Mechanical Shutter Required
The iXM-GS120 uses an electronic global shutter and does not require a mechanical shutter. Phase One identifies this design as providing low-to-no maintenance while supporting high-speed image capture.

Fastest Shutter Speed on the Market
The electronic global shutter supports exposure times up to 1/16,000 second for capturing detailed still frames of fast-moving objects.




Key Features:
  • 120 MP CMOS global shutter sensor
  • 12,768 x 9,564 pixel resolution
  • Electronic global shutter with exposure times up to 1/16,000 second
  • 80 dB dynamic range
  • RGB and achromatic color options
  • 3.45 µm pixel size
  • P3 UAV camera platform for professional inspection and mapping
  • Smart focusing with built-in laser range finder
  • Smart triggering
  • Phase One RSM and RS lens mounts
  • CFexpress internal storage up to 1 TB
  • 10G Ethernet Fiber/Copper and USB 3 interfaces
  • Phase One SDK and MAVLink API
  • Includes 1-Year Silver Support





IXM-GS120 SPECIFICATION SHEET
IXM-GS120 SPECIFICATION SHEET

There are currently no specs for this product.

Qty 1- Phase One P3-GS120-DJI M300/M350

Qty 1- Silver Support (1-Year)
