PHASE ONE P3 + IXM-100MP FOR DJI MATRICE 300/350 WITH 1-YEAR SILVER SUPPORT

Calculating price...
PART: 76020700
SUPPLIER: PHASE ONE UNITED STATES, INC.
QUANTITY

About This Item:

The Phase One P3 + iXM-100MP combines the P3 UAV camera platform with a 100 MP medium-format CMOS camera for professional aerial inspection and mapping applications. The iXM-100MP uses backside illumination technology and captures 11,664 x 8,750-pixel images with an 83 dB dynamic range. The P3 supports horizontal and vertical camera configurations, allowing operators to adapt image capture to different inspection requirements while using smart focusing and smart triggering for complex assets and moving objects.

Designed for use with DJI Matrice 300 and Matrice 350 aircraft, the P3 integrates the iXM-100MP into a professional UAV imaging system with a built-in laser range finder for smart focusing. The iXM-100MP supports Phase One RSM lenses and provides shutter speeds up to 1/2500 second for aerial imaging under different flight conditions. This configuration also includes 1-Year Silver Support.


High-Resolution UAV Imaging for Inspection and Mapping




100 MP Medium-Format Imaging

The iXM-100MP combines a 100 MP medium-format CMOS sensor with a resolution of 11,664 x 8,750 pixels and an 83 dB dynamic range for detailed aerial image capture.


Flexible Camera Configuration

The P3 supports vertical and horizontal camera orientations, allowing the configuration to be adapted to the type of asset being inspected. Phase One states that changing orientation can help reduce background noise and collect data faster.


Multiple Lens Options

The P3 supports multiple Phase One lens configurations for adjusting image coverage and detail to project requirements. Phase One documents P3 lens options from 35 mm to 150 mm, although the 150 mm lens is not supported with the DJI Matrice 300 or Matrice 350 configuration.

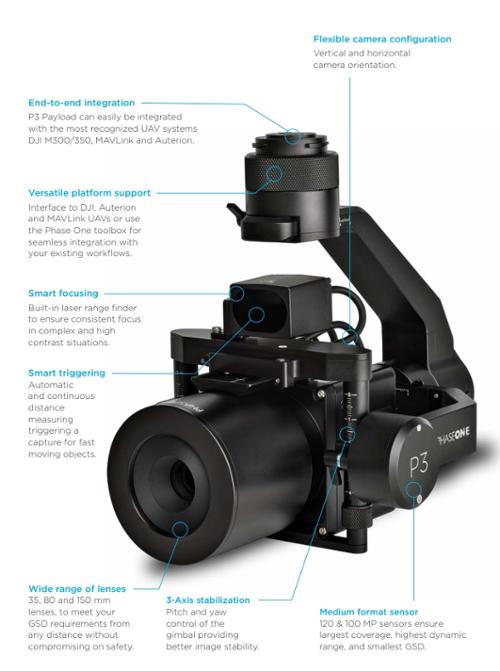

Smart Focusing and Triggering

The P3 features smart focusing with a built-in laser range finder to maintain consistent focus in complex and high-contrast situations. Smart triggering uses automatic and continuous distance measurement to trigger image capture for fast-moving objects.





Key Features:
  • 100 MP medium-format CMOS sensor
  • 11,664 x 8,750 pixel resolution
  • Backside illumination technology
  • 83 dB dynamic range
  • Maximum shutter speed of 1/2500 second
  • RGB and achromatic color options
  • Vertical and horizontal P3 camera configurations
  • Smart focusing with built-in laser range finder
  • Smart triggering with automatic and continuous distance measurement
  • Phase One RSM lens compatibility
  • P3 lens options from 35 mm to 150 mm, with 150 mm not supported on DJI M300/M350
  • DJI Matrice 300 and Matrice 350 integration
  • P3 support for inspection and mapping applications
  • Includes 1-Year Silver Support



P3 UAV PAYLOAD SPECIFICATION SHEET
P3 UAV PAYLOAD SPECIFICATION SHEET
PHASE ONE IXM SERIES SPECIFICATION SHEET
PHASE ONE IXM SERIES SPECIFICATION SHEET

There are currently no specs for this product.

Qty 1- Phase One P3-iXM100-DJI M300/M350

Qty 1- Silver Support (1-Year)
