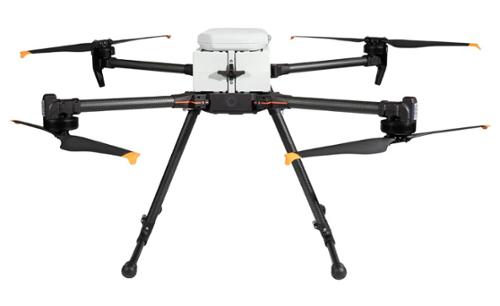

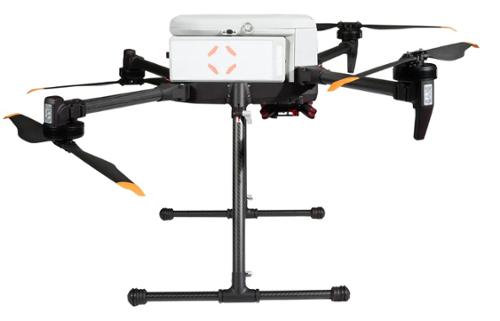

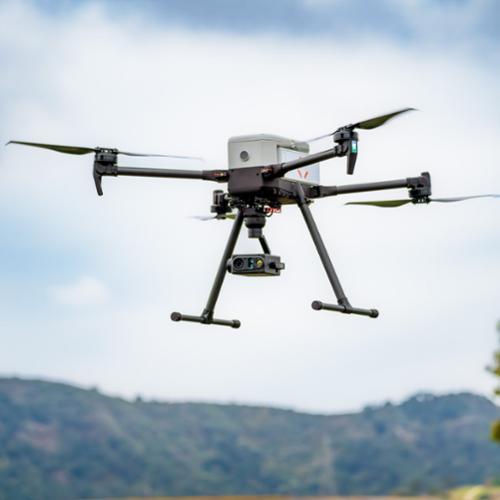

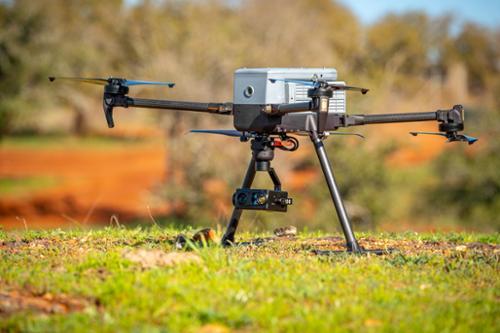

The IF800 Tomcat + Blue Herelink Controller Base Bundle combines the Inspired Flight IF800 Tomcat quadcopter with a Blue Herelink ground controller for professional aerial operations. The IF800 delivers up to 54 minutes of maximum flight time, a maximum speed of 49 mph, and a maximum payload capacity of 6.6 lb. Its payload integration supports sensors and optics for applications including surveying and mapping, high-resolution imaging and inspection, thermal inspection, search and rescue, agriculture, environmental monitoring, LiDAR mapping, terrain modeling, and utility inspection.

The IF800 incorporates a tool-free payload mounting system with mechanical locking points and dedicated mounting locations for GNSS antennas and RTK/PPK modules. Center-of-gravity adjustment supports integration with sensors, optics, and LiDAR payloads. The included Herelink ground control option features a 5.46-inch touchscreen with 1,000-nit brightness, customizable buttons and control wheel, a built-in 4,950 mAh Li-ion battery, and approximately four hours of runtime.

The IF800 Tomcat combines a maximum flight time of up to 54 minutes with a 6.6 lb maximum payload capacity and maximum airspeed of 49 mph. The provided specification sheet identifies the aircraft as Blue UAS and NDAA compliant and documents an IP43 rating, hot-swappable smart batteries, maximum wind resistance of 19 knots with gusts up to 23 knots, and operation from -4°F to 113°F. These capabilities support professional deployments where payload flexibility, portability, and field-ready performance are required.

• Maximum flight time up to 54 minutes
• Maximum payload capacity of 6.6 lb
• Maximum airspeed of 49 mph
• 19-knot maximum wind resistance with gusts up to 23 knots
• IP43 rated
• Hot-swappable smart batteries
• Tool-free payload mounting system with mechanical locking points
• Dedicated mounting points for GNSS antennas and RTK/PPK modules
• Center-of-gravity adjustment for sensors, optics, and LiDAR
• Blue Herelink ground controller included
• 5.46-inch Herelink touchscreen with 1,000-nit brightness
• Herelink built-in 4,950 mAh Li-ion battery
• Approximately 4 hours of Herelink runtime
• Folded aircraft dimensions of 14.2 x 17.4 x 7.8 in.
• Operating temperature range of -4°F to 113°F
• Blue UAS and NDAA compliant
