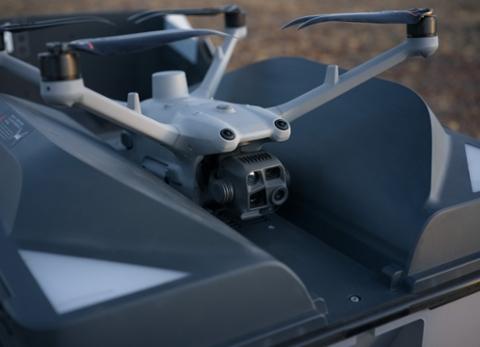

Introducing the DJI Matrice 4D, a state-of-the-art drone designed specifically for seamless integration with the DJI Dock 3. The Matrice 4D combines advanced capabilities with the reliability and versatility required for various professional applications. With its robust weather-resistant design and high-precision RTK modules, the Matrice 4D ensures accurate positioning and navigation, making it perfect for infrastructure inspection, security monitoring, agriculture, emergency response, and environmental assessment. Built to accommodate the DJI Dock 3, the Matrice 4D facilitates continuous missions with automated charging and redeployment, maximizing operational efficiency.
The DJI Matrice 4D features an advanced dual-camera system, including thermal and high-resolution imaging, enabling precise data collection and analysis. Its intelligent flight capabilities and cutting-edge software integration allow for efficient and precise performance in challenging environments. By seamlessly integrating with the DJI Dock 3, the Matrice 4D supports autonomous operations, reducing the need for manual intervention and enhancing productivity. Whether you’re conducting critical inspections, monitoring large areas for security, or assessing environmental changes, the Matrice 4D provides the tools you need to achieve your goals with confidence and accuracy.
Engineered to excel in diverse conditions, the Matrice 4D offers unparalleled versatility and reliability. Its open architecture allows for easy integration with third-party systems and applications, providing a flexible solution tailored to your specific needs. The DJI Matrice 4D’s seamless compatibility with the DJI Dock 3 enables ultra-long missions, ensuring that your operations continue smoothly without interruptions. Experience the future of drone technology with the DJI Matrice 4D and elevate your operations to new heights with the power of autonomous flight.
1/1.3-inch CMOS 48MP Effective Pixels f/2.8 70mm Format Equivalent
Tele Camera
1/1.5-inch CMOS 48MP Effective Pixels f/2.8 168mm Format Equivalent
Laser Range Finder
Measurement Range: 1800 m (1 Hz); Oblique Incidence Range (1: 5 Oblique Distance): 600 m (1 Hz), Blind Zone: 1 m, Range Accuracy (m): ± (0.2 + 0.0015 × D)
Longer Flight Time, Robust Protection
When fully charged, Matrice 4D/4TD delivers an impressive flight time of 47 minutes at a speed of 15 m/s, achieving a remarkable 37% increase in operation time. At a radius of 10 km, these drones provide 18 minutes of operation. Both models are designed to endure harsh conditions with an impressive IP55 dust and water resistance rating.
Obstacle Sensing for Safe Operation
The Obstacle Sensing Module for Matrice 4D/4TD combines rotating LiDAR and millimeter-wave radar technologies for precise 12mm wire-level obstacle avoidance at speeds up to 15 m/s in complex power line crossings, as well as enhanced positioning in low-light conditions. Operational safety are ensured for varying environments of power distribution network and the intricate layouts of substations.
High-Precision Surveying
Matrice 4D Series drones excel in high-precision mapping, offering a new 5-direction oblique photography function, 3-direction orthophoto photography, and real-time terrain following to meet various mapping requirements.
Excels in Low-Light Environments
Matrice 4D Series drones feature four high-resolution, low-light fisheye lenses, significantly enhancing visual low-light positioning and obstacle sensing capabilities. The new Night Scene mode offers full-color night vision.

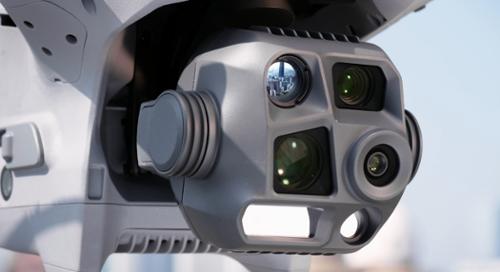

Clear Vision and Stable Images
Matrice 4D Series drones are equipped with medium tele and tele cameras with foreground stabilization. The medium tele camera is effective for medium-range inspections, detecting pins and cracks from 10 meters, and clearly reading instrument data at substations. The 48 MP tele camera captures details, like signs, from up to 250 m away.
Key Features:
Seamless DJI Dock 3 integration for autonomous operations
IP55-rated weather-resistant design for harsh environments
High-precision RTK modules for accurate positioning
Dual-camera system: 20MP wide-angle, 48MP medium tele, and 48MP tele cameras
Laser range finder with 1,800 m measurement range
Obstacle sensing with LiDAR and radar for 12 mm wire-level detection
Night Scene mode and low-light fisheye lenses for enhanced visibility
Up to 47 minutes flight time and extended operational range
Real-time terrain following and multi-directional imaging for mapping
Open architecture for third-party system integration
