Home Unmanned Autonomous Solutions Aerial Drones Commercial/Enterprise DJI MATRICE 4TD WITH CARE PLUS

DJI MATRICE 4TD WITH CARE PLUS

Calculating price...
Part CB.202501222757
SUPPLIER: DJI
QUANTITY

About This Item:

The DJI Matrice 4TD with Care Plus is a high-performance enterprise drone designed for precision, reliability, and adaptability in demanding environments. Built for all-weather operations, it features advanced multi-sensor capabilities including wide-angle, telephoto, and thermal imaging, along with a laser range finder and NIR auxiliary light for enhanced situational awareness. With up to 47 minutes of flight time and seamless integration with DJI Dock 3 for automated charging and deployment, the Matrice 4TD is ideal for continuous operations in critical sectors such as public safety, infrastructure inspection, energy monitoring, and environmental management.

This platform combines rugged hardware with intelligent flight systems to deliver accurate data collection and operational efficiency. Its IP-rated protection, extended temperature range, and robust transmission system ensure dependable performance in harsh conditions. The included DJI Care Plus plan provides comprehensive coverage for accidental damage and major incidents, offering unlimited replacements and annual maintenance to keep your fleet mission-ready.

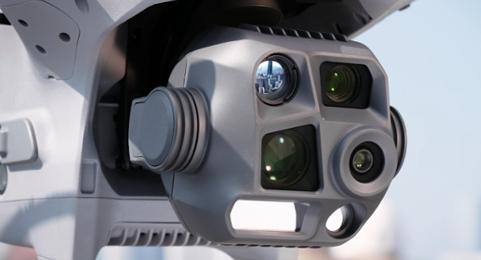

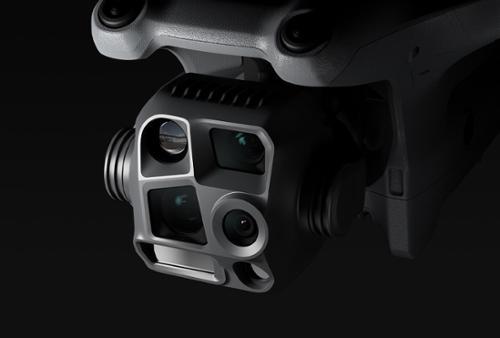

DJI Matrice 4TD Camera Features



Wide-Angle Camera

1/1.3-inch CMOS 48MP Effective Pixels f/1.7 24mm Format Equivalent
Medium Tele Camera

1/1.3-inch CMOS 48MP Effective Pixels f/2.8 70mm Format Equivalent
Tele Camera

1/1.5-inch CMOS 48MP Effective Pixels f/2.8 168mm Format Equivalent
Laser Range Finder

Measurement Range: 1800 m (1 Hz); Oblique Incidence Range (1: 5 Oblique Distance): 600 m (1 Hz) Blind Zone: 1 m Range Accuracy (m): ± (0.2 + 0.0015 × D)
NIR Auxiliary Light

6° FOV, 100m [10] Illumination Distance
Infrared Thermal Camera

640×512 Resolution f/1.0 53mm Format Equivalent Uncooled VOx Microbolometer Supports UHR Infrared Image mode



Longer Flight Time, Robust Protection

When fully charged, Matrice 4D/4TD delivers an impressive flight time of 47 minutes at a speed of 15 m/s, achieving a remarkable 37% increase in operation time. At a radius of 10 km, these drones provide 18 minutes of operation. Both models are designed to endure harsh conditions with an impressive IP55 dust and water resistance rating.

Obstacle Sensing for Safe Operation

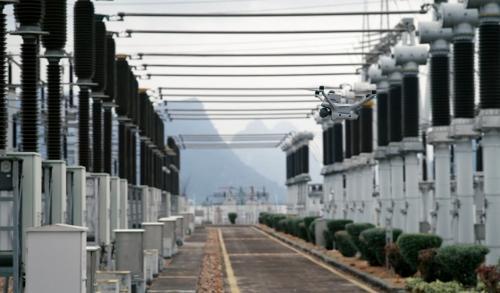

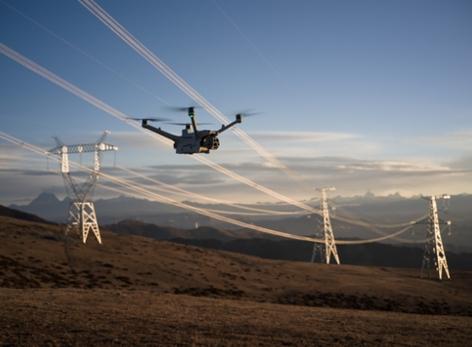

The Obstacle Sensing Module for Matrice 4D/4TD combines rotating LiDAR and millimeter-wave radar technologies for precise 12mm wire-level obstacle avoidance at speeds up to 15 m/s in complex power line crossings, as well as enhanced positioning in low-light conditions. Operational safety are ensured for varying environments of power distribution network and the intricate layouts of substations.





High-Precision Surveying

Matrice 4D Series drones excel in high-precision mapping, offering a new 5-direction oblique photography function, 3-direction orthophoto photography, and real-time terrain following to meet various mapping requirements. DJI FlightHub 2 has been upgraded for Matrice 4TD operations. This upgrade introduces a range of flight route planning options, including Smart 3D Capture routes, geometric routes, and slope routes, enhancing efficiency while ensuring detailed modeling.

Excels in Low-Light Environments

Matrice 4D Series drones feature four high-resolution, low-light fisheye lenses, significantly enhancing visual low-light positioning and obstacle sensing capabilities. The new Night Scene mode offers full-color night vision. Matrice 4TD additionally provides IR-Cut Filter feature for black-and-white night vision and 24/7 operations, as well as a new NIR auxiliary light that can cover distances up to 100 m. Matrice 4TD's infrared thermal camera supports the UHR Infrared Image mode with image resolutions up to 1280 × 1024 and a High-Res mode for detailed temperature readings.

Clear Vision and Stable Images

Matrice 4D Series drones are equipped with medium tele and tele cameras with foreground stabilization. The medium tele camera is effective for medium-range inspections, detecting pins and cracks from 10 meters, and clearly reading instrument data at substations. The 48 MP tele camera captures details, like signs, from up to 250 m away. When using Matrice 4TD's tele camera as the aircraft is hovering in a windless environment, the gimbal can tilt upwards by 80 degrees, making bridge underside defects clearly visible. Upgraded stabilization keeps foreground subjects clear during telephoto shots at 10x zoom or higher.



Key Features:

  • Robust, weather-resistant design for reliable performance in diverse conditions
  • High-precision RTK modules for accurate positioning
  • Advanced dual-camera system featuring thermal and high-resolution imaging
  • Seamless integration with DJI Dock 3 for automated charging and redeployment
  • Intelligent flight capabilities and cutting-edge software integration for autonomous operations
  • Wide-angle camera: 1/1.3-inch CMOS, 48MP, f/1.7, 24mm equivalent
  • Medium tele camera: 1/1.3-inch CMOS, 48MP, f/2.8, 70mm equivalent
  • Tele camera: 1/1.5-inch CMOS, 48MP, f/2.8, 168mm equivalent
  • Laser range finder with 1800 m measurement range and ±(0.2 + 0.0015 × D) accuracy
  • NIR auxiliary light with 6° FOV and 100 m illumination distance
  • Infrared thermal camera: 640×512 resolution, f/1.0, 53mm equivalent, uncooled VOx microbolometer
  • Longer flight time of up to 47 minutes at 15 m/s speed
  • Open architecture for easy integration with third-party systems and applications
