SKYDIO R10 INDOOR DFR

Calculating price...
PART: SKYDIO-R10
SUPPLIER: Skydio
QUANTITY

About This Item:

The Skydio R10 enters hazardous environments so your team doesn't have to.

The Skydio R10 Indoor DFR is a compact indoor drone designed for public safety, patrol, and confined-space operations. Built to extend Drone as First Responder operations indoors, R10 provides live visual and audio access during alarm calls, open-door responses, building searches, indoor reconnaissance, high-risk vehicle stops, and barricaded suspect searches. AI-driven autonomy with NightSense provides obstacle avoidance in dark or zero-light conditions, while automated back-tracking remembers the aircraft's path through tight indoor spaces.

R10 also supports confined-space inspections, industrial infrastructure monitoring, and post-incident safety checks. Integrated high-intensity lighting, two-way communications, a 12.5 MP camera, Perch Mode with up to three hours of streaming, Wi-Fi 6, and cellular LTE/5G support provide tools for indoor situational awareness and remote operations. R10 works with Skydio Extend integrations including Axon Evidence, Fusus, CAD systems, ESRI Site Scan, and asset management systems, while media is encrypted end-to-end and backed by CJIS v6.0 compliant infrastructure.







Rugged. Reliable. Relentless.

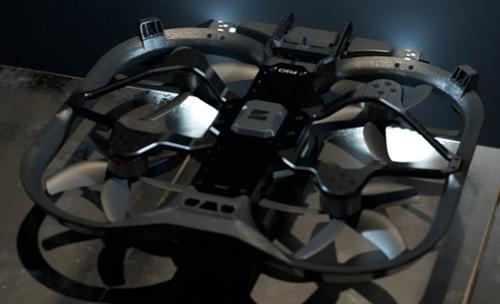

R10 features a lightweight composite frame with reinforced propeller guards for operation in tight, cluttered indoor environments. Turtle Mode allows the aircraft to flip itself upright after an upside-down landing and return to flight.



Small frame. Fully loaded.

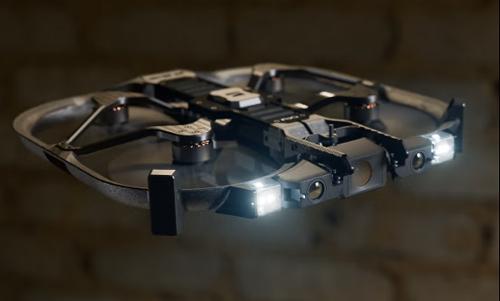

R10 combines a 1-inch 12.5 MP sensor with a 93-degree diagonal field of view and 20 mm equivalent focal length. The camera supports stabilized 4K video, while integrated high-power LED floodlights provide illumination for hallways, stairwells, rooms, and other dark or zero-light environments. Two forward-facing stereo navigation cameras provide 180-degree coverage for real-time obstacle detection and NightSense obstacle avoidance.



Stay connected. Everywhere.

R10 supports cellular LTE/5G connectivity and comes standard with Skydio Connect Fusion. Dual SIM capability allows two carriers to be configured for coverage flexibility, while Connect Fusion combines available links to support video streaming. R10 also supports Wi-Fi 6 for wireless networking and media offload.








AI-Driven Autonomy and Obstacle Avoidance in the Skydio R10

R10 uses onboard AI-driven autonomy to detect and avoid obstacles in confined indoor environments. NightSense extends obstacle avoidance into dark and zero-light conditions, while automated back-tracking remembers the aircraft's path. Dual forward-facing navigation cameras provide 180-degree obstacle avoidance coverage.






Professional Use Cases for the Skydio R10

Indoor Reconnaissance and Building Searches: Use R10 for indoor reconnaissance, alarm calls, open doors, and building searches to provide visual information before personnel enter an unknown interior.

High-Risk and Barricaded Suspect Operations: R10 supports high-risk vehicle stops and barricaded suspect searches, providing remote visual access and built-in communications from a position of cover.

Confined-Space Inspections: Use the compact R10 for confined-space inspections. Its 180-degree pitch gimbal provides views above and below obstacles, while integrated lighting supports visibility in dark interior spaces.

Industrial Infrastructure Monitoring:R10 supports industrial infrastructure monitoring using onboard imaging, lighting, remote flight, and live streaming capabilities.

Post-Incident Safety Checks: Use R10 for post-incident safety checks where remote visual access to interior environments is needed.

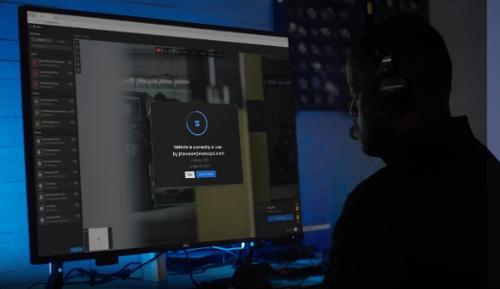

R10 can be launched locally and handed off to a remote operator using Ops Center or Skydio Command software. Once powered on, the aircraft can be operated remotely through a browser interface.

R10 supports 5G/LTE connectivity with Skydio Connect Fusion and dual SIM capability. Operators can use data plans from supported mobile network operators and configure two carriers for coverage flexibility.


ReadyLink provides browser-based live streaming for users on scene or at command. R10 media is encrypted end-to-end and backed by CJIS v6.0 compliant infrastructure.

Skydio Extend supports integrations and data pipelines including Axon Evidence, Fusus, CAD systems, ESRI Site Scan, and asset management systems.





  Skydio R10 Aircraft Features:
  • Startup time under 30 seconds

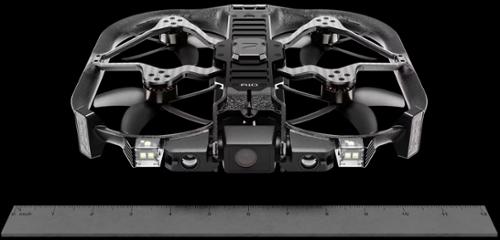

  • Dimensions: 2.4 in. high × 10.3 in. wide × 10.4 in. long
  • Weight with battery: 1.73 lb
  • 4-inch propellers
  • Maximum horizontal speed: approximately 27 mph at sea level
  • Maximum horizontal speed with obstacle avoidance: approximately 18 mph
  • Maximum ascent speed: approximately 9 mph
  • Maximum descent speed: approximately 7 mph
  • Maximum gust handling: approximately 22 mph
  • Flight time: 20 minutes
  • Maximum Perch Mode time: 3 hours
  • Qualcomm Snapdragon 865 SoC
  • Forward-facing 180-degree obstacle avoidance coverage
  • Wi-Fi 6 and cellular LTE/5G connectivity

Skydio R10 Camera and Vision System Features:
  • 1-inch 12.5 MP camera sensor
  • 93-degree diagonal field of view
  • 8 mm focal length, 20 mm equivalent
  • f/1.95 aperture
  • 100% focus pixel coverage from 1 meter to infinity
  • Exposure compensation from -3 to +3
  • Electronic shutter speed from 1/30 to 1/8000 second
  • ISO range from 100 to 16,000
  • Dual forward-facing navigation cameras
  • 180-degree forward-facing obstacle avoidance coverage
  • Integrated lighting for dark and zero-light environments
  • NightSense obstacle avoidance for zero-light navigation
