The Autel EVO Max 4T is an enterprise drone platform designed for advanced aerial data collection, inspection, and public safety operations. Built with an integrated multi-sensor payload that combines wide-angle, zoom, and thermal cameras with a laser rangefinder, it delivers simultaneous imaging and measurement capabilities in a single flight. The system supports 3D map planning, multiple mission types, and real-time data collection, enabling operators to capture actionable intelligence across complex environments. With support for navigation in GPS-denied areas and secure data handling, the EVO Max 4T is suited for infrastructure inspection, emergency response, mapping, and surveillance applications.

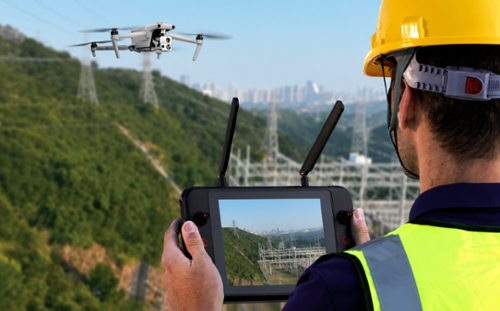

Engineered for operational reliability, the EVO Max 4T features 720° obstacle avoidance, long-range transmission through Autel SkyLink 3.0, and up to 42 minutes of flight time for extended missions. Its advanced autonomy engine enables real-time 3D path planning and obstacle detection, supporting safe flight operations in dense or low-visibility environments such as urban areas, power corridors, and industrial sites. The platform also incorporates mesh networking for coordinated workflows and consistent connectivity, making it a practical solution for teams performing public safety overwatch, search and rescue, industrial inspection, and land surveying tasks.
Evo Max 4T:
A Leader in Drone Intelligence
The EVO Max 4T delivers advanced autonomy and integrated technologies for professional drone operations. It evaluates complex environments to generate real-time 3D flight paths that support precise obstacle avoidance. Equipped with advanced sensors, the system can operate in GPS-denied areas, while the thermal payload enhances object detection and tracking capabilities. Its foldable, weather-resistant design supports portability without compromising operational performance.
| |
Navigation in GPS‑Denied Environments
Advanced onboard sensors enable the EVO Max 4T to maintain stable navigation within hardened structures, underground locations, and other environments where GPS signals are unavailable.
|
|
Accurate Object Identification and Tracking
Powered by Autel’s AI recognition technology, the EVO Max 4T can automatically detect and lock onto targets such as heat sources, moving individuals, and vehicles. This capability supports high-altitude tracking and reliable data collection for public safety and law enforcement operations.
|
|
| |
Autonomous Flight Path Planning
Autel’s Autonomy Engine gathers environmental data in real time to generate 3D flight paths through complex environments such as mountains, forests, and urban structures. This capability supports precise navigation and mission execution across a range of applications, including 3D scene reconstruction, public safety monitoring, industrial inspection, and land surveying.
|
|

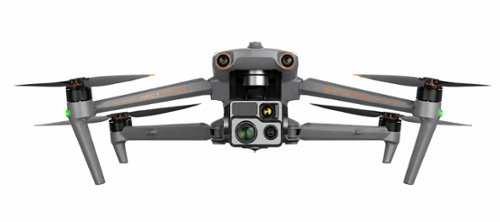

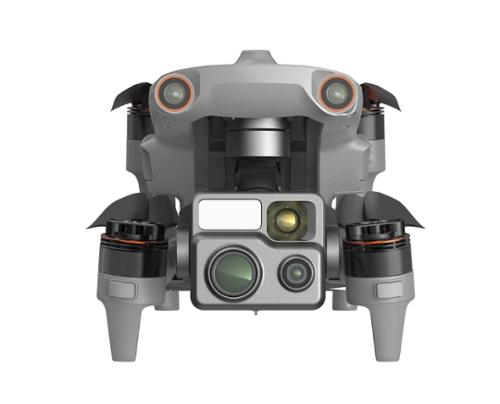

Integrated Mission-Ready Payload
The payload combines wide-angle, zoom, and thermal imaging with a laser rangefinder to support comprehensive data capture and informed decision-making during mission operations.
| |
Laser Rangefinder
Tap a target to quickly capture precise distance, coordinates, and altitude data from up to 0.75 miles away.
|
|
Zoom Camera
Supports 8K imaging with 10x optical zoom and up to 160x hybrid zoom, delivering clear detail on subjects at distances of up to 1.24 miles.
|
|
| |
Wide Camera
Enhanced with Moonlight Algorithm 2.0 for improved post-processing and low-light performance, enabling clear, detailed image capture. Supports 4K video at 30 fps with high ISO capability, while photo mode reduces noise and improves HDR output.
|
|
Thermal Camera
Equipped with a 640 × 512 high-resolution thermal imaging sensor, supporting 30 fps capture and up to 16x digital zoom for detailed heat detection.
|
|
A-Mesh 1.0 Mesh Networking Technology
Strong Anti-Interference
The EVO Max 4T maintains reliable communication with nearby drones without relying on a traditional chain network. If a single unit disconnects or fails, the system automatically reorganizes to continue transmitting critical data without interruption.
Beyond Visual Line of Sight Applications
A-Mesh technology enables multiple drones to function as relay points, improving communication range and supporting more effective beyond visual line of sight operations.
Centralized Fleet Control
Operators can manage multiple drones from a single controller or coordinate as a team, with support for operations in areas with or without LTE coverage.
Extended Communication Range
Communication nodes can be deployed on fixed locations such as hills or poles to expand coverage, while drone fleets can dynamically extend network reach across large operational areas.
| |
Autel Enterprise App Platform
The Autel Enterprise App is purpose-built for industrial operations, featuring a redesigned interface that supports straightforward and efficient flight control. Expanded functionality and semi-autonomous flight modes enhance mission performance and improve operational workflow for the EVO Max 4T.
|
|
| |
Autel SkyLink 3.0
The EVO Max 4T SkyLink 3.0 system is equipped with six antennas, four frequency bands, and AES-256 encryption, with optional 4G integration for enhanced connectivity and secure data transmission. It supports reliable long-range communication and real-time image streaming for demanding operations.
- Up to 12.4 miles image transmission range
- 1080p / 60 fps real-time video output
- Multiple frequency bands: 900MHz, 2.4GHz, 5.2GHz, 5.8GHz
- Low latency transmission under 150 ms
|
|
| |
Data Security
The EVO Max 4T uses encrypted communication across the entire system, including aircraft, controllers, and cloud connections, to protect sensitive operational data. Privacy-focused design ensures that user information, flight records, and location data remain accessible only through the aircraft locally. Encrypted storage further safeguards photos, videos, and flight logs with secure password protection.
|
|
Key Features:
- Integrated wide, zoom, and thermal cameras with laser rangefinder sensor
- Autel SkyLink 3.0 transmission system with long-range connectivity
- 720° omnidirectional obstacle avoidance for complex environments
- Navigation capability in GPS-denied environments
- A-Mesh 1.0 mesh networking for multi-drone coordination
- 3D map planning with multiple mission types and data security support
- Up to 42 minutes maximum flight time
- IP43 ingress protection rating and extended operating temperature range
