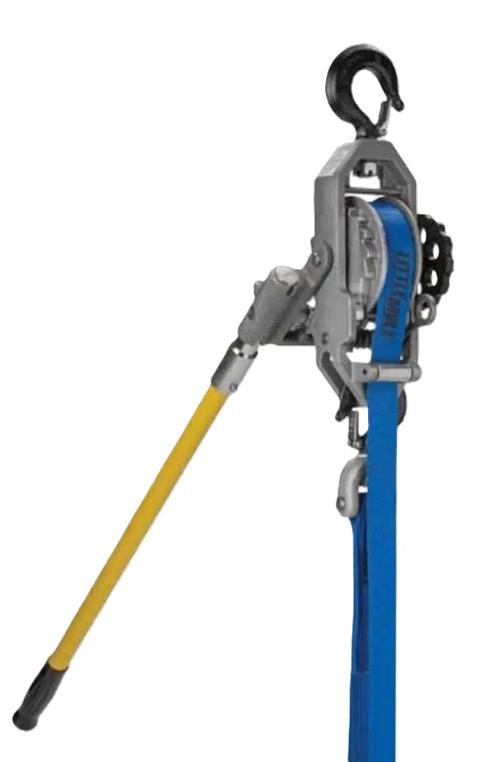

The CM Little Mule Lineman's Strap Hoist is a manually operated lever hoist designed for lifting, pulling, and tensioning applications in utility linework. Based on the manufacturer's 344B-series specifications, the hoist provides a 1-ton capacity with an 11-foot lift in single-line configuration or a 2-ton capacity with a 5.5-foot lift in double-line configuration. Its double interlocking pawl system provides positive load control, while the self-storing web drum and winding wheel support strap take-up and load positioning.

The hoist features a cast aluminum frame, a 12-foot-long, 1-1/2-inch-wide blue polyester web strap, and a 30-inch solid fiberglass operating handle with a replaceable overload-protection tip. A quick-disconnect sheave block allows conversion between single-line and double-line configurations. The Little Mule hoist family is manufactured in the USA in accordance with ASME B30.21 for manually operated lever hoists.

• 1-ton single-line capacity with 11 ft lift
• 2-ton double-line capacity with 5.5 ft lift
• Designed for lifting, pulling, and tensioning applications
• Double interlocking pawls for positive load control
• 12 ft blue polyester web strap, 1-1/2 in. wide
• Solid fiberglass handle with overload-protection tip
• Non-conductive winding wheel for strap take-up
• Quick-disconnect sheave block for single- or double-line operation
• Cast aluminum frame
• Manufactured in the USA in accordance with ASME B30.21
