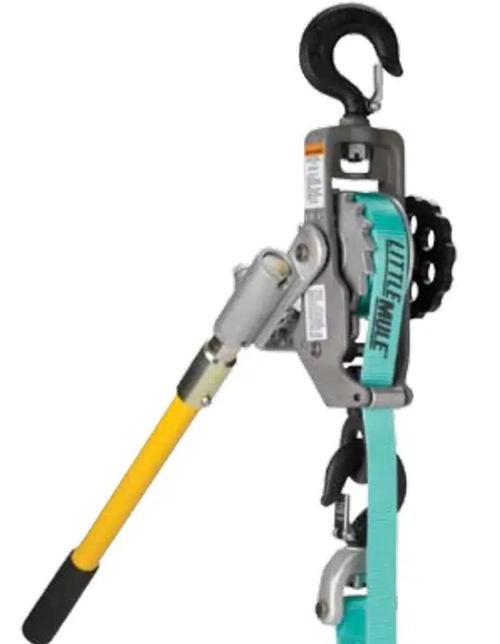

The CM Little Mule Lineman's Strap Hoist is a manually operated lever hoist designed for lifting, pulling, and tensioning applications in utility linework. It provides a 3/4-ton capacity with a 9-foot lift in single-line configuration or a 1-1/2-ton capacity with a 4.25-foot lift in double-line configuration. Standard forged steel hooks with safety latches provide load attachment points, while a double interlocking pawl system maintains positive load control during operation.

The hoist features a cast aluminum frame, green polyester web strap, and solid fiberglass operating handle with a replaceable overload-protection tip designed to bend under excessive load. A non-conductive winding wheel allows quick strap take-up, while the quick-disconnect sheave block supports conversion between single-line and double-line configurations. The hoist includes a 10-foot-long, 1-1/4-inch-wide web strap, a 20-inch handle, and an 11 lb net weight. It is manufactured in the USA in accordance with ASME B30.21 for manually operated lever hoists.

• 3/4-ton single-line capacity with 9 ft lift
• 1-1/2-ton double-line capacity with 4.25 ft lift
• Designed for lifting, pulling, and tensioning applications
• Standard forged steel hooks with safety latches
• Double interlocking pawls for positive load control
• 10 ft green polyester web strap, 1-1/4 in. wide
• Solid fiberglass handle with overload-protection tip
• Non-conductive winding wheel for strap take-up

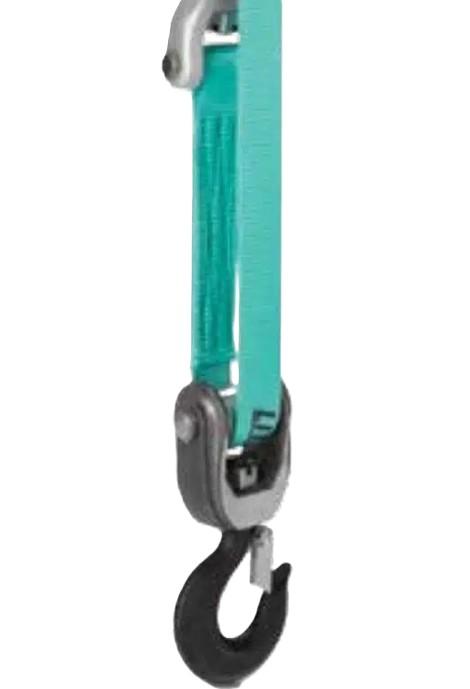

• Quick-disconnect sheave block for single- or double-line operation
• Cast aluminum frame
• 11 lb net weight
• Manufactured in the USA in accordance with ASME B30.21
