GenerLink Transfer Switch Surge Protection vs. Non-Surge Protection

Not sure which transfer switch is right for your home? The primary difference between the Surge and Non-Surge models is the inclusion of built-in surge protection.

Surge Transfer Switch

A Surge Transfer Switch includes integrated surge protection to help safeguard your home's electrical system, appliances, and sensitive electronics from damaging voltage spikes caused by lightning, utility grid disturbances, or other electrical events. This protection is active whenever your home is connected to utility power, providing an added layer of protection even when your generator is not in use.

Non-Surge Transfer Switch

A Non-Surge Transfer Switch delivers the same safe, reliable connection between your portable generator and home's electrical system during a power outage but does not include built-in surge protection. This option is ideal if your home already has a whole-home surge protector installed or if you do not require additional surge protection.

GenerLink Transfer Switch Standard vs. Hybrid Transfer Switch

Not sure which GenerLink transfer switch is right for your home? The key difference is how the device is installed into your homes electrical service.

Standard Transfer Switch

The Standard Transfer Switch is designed for homeowners who have a utility that approves the device to be behind their electrical meter. This requires that your utility provider comes out and pulls the meter for your house to complete the installation. It provides a safe and reliable connection at the electric meter, allowing you to power selected circuits in your home during an outage without the need for extension cords or a manual panel changeover using a portable generator.

Hybrid Transfer Switch

The Hybrid Transfer Switch offers the same core functionality as the Standard model but is for utilities that do not approve devices behind the electrical meter. The Hybrid solution can be installed by a licensed electrician of the homeowner’s choice. It provides the same safe and reliable connection, allowing you to power selected circuits in your home during and outage without the need for extensions cords.

Please note: Installation of a GenerLink requires prior approval from your local utility company. We recommend confirming your approval status with your electric provider.

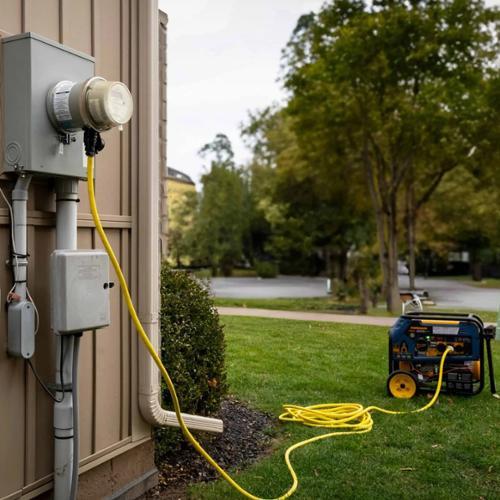

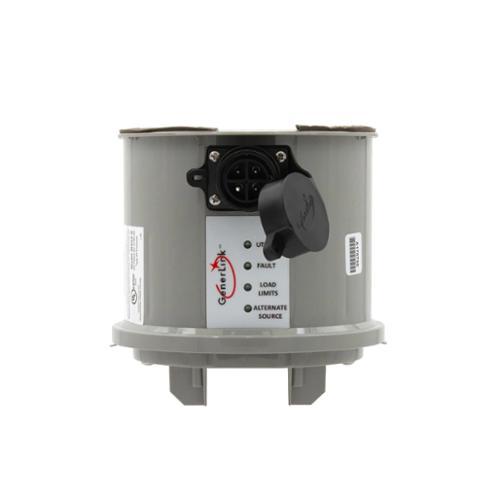

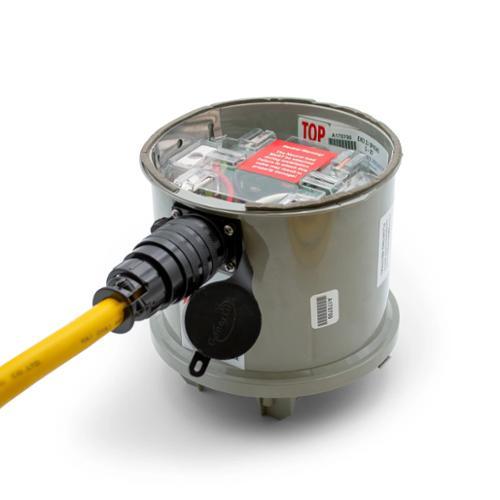

The GenerLink 30‑amp surge model is a meter‑mounted transfer switch designed to safely connect a portable generator directly to a home’s electrical system during a power outage. Installed behind the electric meter, it allows generator power to feed the home’s main breaker panel without the need for rewiring or a separate subpanel. The unit is always installed and ready for use, enabling power to hardwired household loads such as lighting, well pumps, sump pumps, and security systems, up to the capacity of the connected generator.

This 30‑amp configuration includes integrated whole‑home surge protection rated at 75 kA, providing protection for connected appliances and electrical systems during generator operation. The GenerLink is UL‑listed (UL1008M), compliant with the 2020 National Electrical Code, and is intended for residential services rated at 200 amps or less. Installation requires approval from the local utility and is performed by utility personnel or a licensed electrician.

Key Specifications - GenerLink 30‑Amp Surge Model:

• Installation: Must be installed by utility personal or licensed electrician
• Generator input capacity: 30 Amp
• Generator plug type: L14‑30 plug (Included)
• Surge protection: 75 kA whole‑home surge protection
• Transfer switch type: Meter‑mounted transfer switch (Form 2S)
• Service compatibility: 200 Amp service or less
• Dimensions: 6½ in. diameter × 5¼ in. deep
• Weight: 5¾ lb with surge protection
• Socket style: Ring or ring‑less
• Safety listing: UL listed (UL1008M)
• Electrical code compliance: 2020 National Electric Code
• Compatibility: Designed for use with GenerLok Cord 20' X 30 AMP-AWG

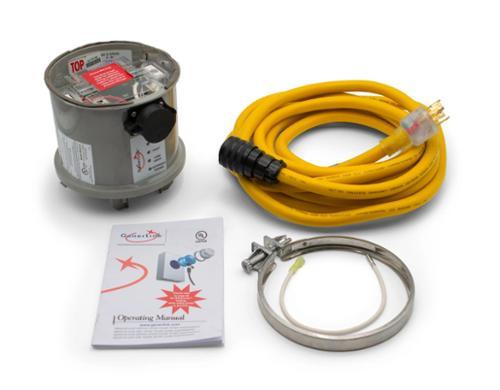

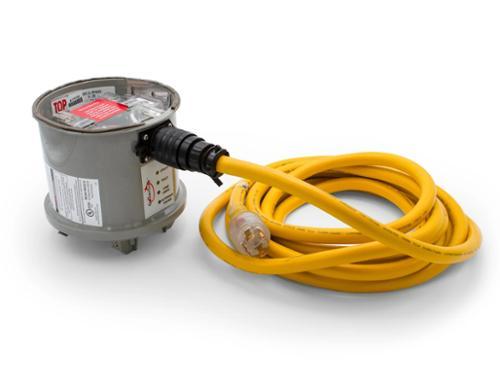

Recommended: GenerLink 30 amp - use with portable generators running below 7,200 watts. Comes with a L14-30 locking connector on 20-foot GenerLok Power Cable.

This GenerLink product only works on a 200-AMP meter base or smaller.

Have more questions? click here and we will reach out soon!
