The Emlid Reach RS3 Survey Kit is a comprehensive solution for high-precision surveying and mapping. This kit includes two Reach RS3 receivers, allowing for flexible base and rover configurations. Features include multi-band GNSS support for GPS, GLONASS, Galileo, BeiDou, and QZSS, ensuring robust performance even in challenging environments. The IMU tilt compensation feature provides accurate measurements with up to 60-degrees of tilt, making it ideal for diverse terrains. Additionally, the built-in LTE modem enables data transmission and correction reception via NTRIP, while the dual-band radio ensures connectivity in areas without internet coverage.
Specifications highlights the Reach RS3's durability and efficiency. The receivers are IP67-rated for dust and water resistance and operate efficiently within a temperature range of -20°C to 65°C. he industrial-grade battery provides up to 22-hours of logging or 18-hours of RTK rover work with tilt compensation for prolonged field operation. The LoRa radio port allows for long-range communications between Reach devices, and the USB-C port offers convenient charging and connectivity options. With RINEX logging and PPP support, the Emlid Reach RS3 guarantees comprehensive data collections and compatibility with various software solutions.
Calibration-free: Emlid calibrates the inertial measurement unit in each device individually at the factory, so you can get your GNSS unit up and running right out of the box.
Immune to magnetic disturbances: Unaffected by magnetic fields, RS3’s GNSS and IMU sensors provide robust tilt compensation even when working close to metal structures.
Quick initialization: Tilt initialization takes about 20 meters of walking or 10-20 seconds of tilting. Usually ready on the way from the car.
Emlid's software solutions boost productivity by integrating field operations with office tasks. Users can streamline their workflows and improve efficiency.
Emlid Studio: A free downloadable desktop app used for post processing data from GNSS receivers and RTK drones. It supports various workflows, including kinematic processing for precise tracks of measurements, static processing for accurate single-point positions, RTKdrone data processing that provide time stamps with precise coordinates in MRK format, and stop-and-go processing with Emlid Flow.
Emlid Flow 360: A web app that works with the Emlid Flow mobile app. It lets you create, manage, and share survey projects from your web browser. You can prepare projects, export and import data, and access maps and satellite images.
Emlid Flow: An app for managing and using Emlid Reach receivers. It helps you set up your devices, log data for later use, and conduct surveys. The app supports multiple data formats and integrates map layers and satellite images.
Emlid Caster: Another free, cloud-based software service offered by Emlid, that allows users to send RTK corrections from a base station to a rover over the internet using NTRIP-capable devices. It also supports up to 5 bases and 10 rovers at a time.
Key Features:
Multi-Band GNSS Support: GPS, GLONASS, Galileo, BeiDou, and QZSS support for reliable performance in diverse environments.
IMU Tilt Compensation: IMU-based tilt compensation allows for accurate measurements even with up to 60-degrees of tilt.
Calibration-free IMU ensures the device is ready to use right out of the box.
Connectivity Options: Built-in LTE modem for seamless data transmission and correction reception via NTRIP.
Dual-Band radio (LoRa 868/915MHz) for connectivity in areas without internet coverage. (UHF 450MHz) as an option to mix and match RTK receivers within your fleet. Use a high-power external radio on your Reach base and connect with the UHF radio receiver in Reach RS3.
Battery Life: Industrial-grade battery provides up to 22-hours of logging or 18-hours of RTK rover work with tilt compensation. The Reach RS3 Li-ion battery handles high and low temperatures well and over 2000 cycles of charging and discharging while maintaining its original capacity.
RINEX logging and PPP Support: RINEX logging for post-processing and compatibility with various software solutions for highly accurate results anywhere in the world.
Durability: IP67 rating The Reach RS3 is dust and water proof up to a one-meter depth. Silicone plugs completely seal and protect all connectors from water and dust.
Operating Temperature:-20° to +65°C The Reach RS3 has been extensively tested in conditions that stimulate the coldest winters and hottest summers.
Impact-Resistant: The body of the Reach RS3 GNSS receiver is impact-resistant, drop-resistant, and ready for the harshest conditions.
There are currently no resources for this product.
There are currently no specs for this product.

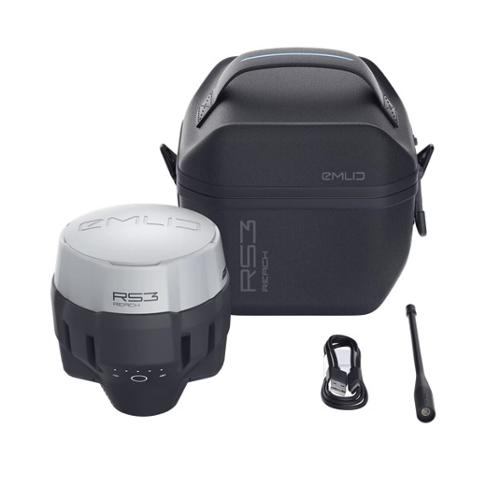

Qty 2- Reach RS3 Qty 2- Carrying case with a strap Qty 2- Radio antenna Qty 2- USB Type-C cable
