The Generac 22kW Guardian air‑cooled standby generator is a residential backup power solution designed to automatically restore electricity during power outages. Rated at 22,000 watts and operating at 120/240 volts, this generator is capable of supporting many whole‑home electrical loads when paired with an appropriately sized automatic transfer switch. It runs on either natural gas or liquid propane and is permanently installed to provide continuous backup power without manual intervention.
This generator is well suited for residential applications where reliable backup power is required during utility interruptions, including single‑family homes that rely on electrically powered heating systems, refrigeration, medical equipment, sump pumps, and home office electronics. The Guardian 22kW model includes built‑in Wi‑Fi connectivity and supports remote system monitoring through Generac Mobile Link, allowing homeowners to view operating status and maintenance alerts from a smartphone, tablet, or computer.
| |

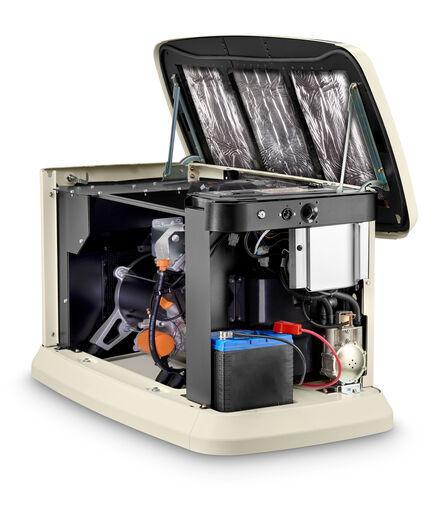

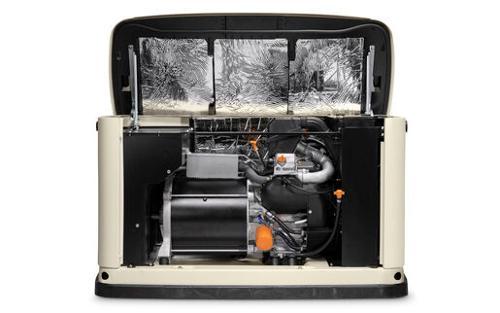

The Generac G‑Force engine is pressure‑lubricated and specifically engineered for standby generator use, supporting long run times and dependable operation.
|
|
TruePower Technology provides power with less than 5% total harmonic distortion, supporting clean and stable operation of sensitive electronics and appliances.
|
|
Quiet‑Test Self‑Test Mode operates at a reduced RPM during five‑ or twelve‑minute test cycles, resulting in quieter operation and lower fuel consumption.
|
|
| |

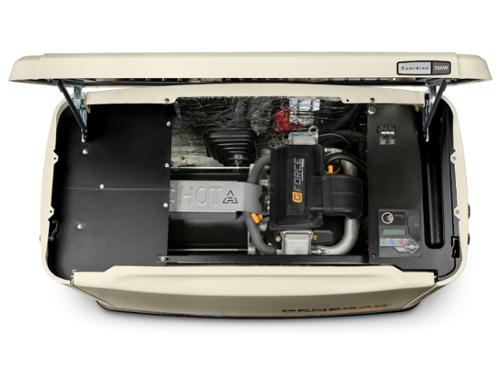

Generacs Evolution controller includes a multilingual LCD display for monitoring battery status and tracking maintenance intervals.
|
|
The RhinoCoat powder‑coated finish protects the aluminum enclosure against corrosion and supports reliable outdoor operation in various weather conditions.
|
|
Key Features:
- 22kW air‑cooled standby generator designed for residential backup power applications
- Operates at 120/240 volts and supports up to 200‑amp service with a compatible transfer switch
- Runs on natural gas or liquid propane fuel sources
- Built‑in Wi‑Fi with Generac Mobile Link for remote monitoring and maintenance alerts
- G‑Force engine engineered specifically for standby generator use
- True Power Technology delivers power with less than 5 percent total harmonic distortion
- Quiet‑Test self‑test mode operates at a lower speed for reduced noise and fuel consumption
- Evolution controller with multilingual LCD display for system status and maintenance tracking
- Aluminum enclosure with RhinoCoat powder‑coated finish for outdoor installation
*Must be located away from doors, windows, and fresh air intakes and in accordance with local codes.
Rated Watts
22,000W (LP) / 19,500W (NG)
Voltage
120/240V, Single Phase
Fuel Type
Natural Gas (NG) or Liquid Propane (LP)
Engine Brand
Generac G Force 1000 Series
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Rated Amps
91.6A (LP) / 81.3A (NG)
Transfer Switch
Optional (not included with generator)
Transfer Switch Amperage
Compatible with up to 200 amp service rated transfer switches
Circuit Breaker Size
Not specified
Decibel Rating @ 7m
67 dBA
Mounting Pad
Composite base attached; direct to soil installation
Cooling System
Air cooled
NG Power Capacity
19.5 kW
LP Power Capacity
22 kW
